CP Bourg BB3002 PUR
Year : 2010
Imps/hrs : 140000 books
Available :
Description
• clamp: 1

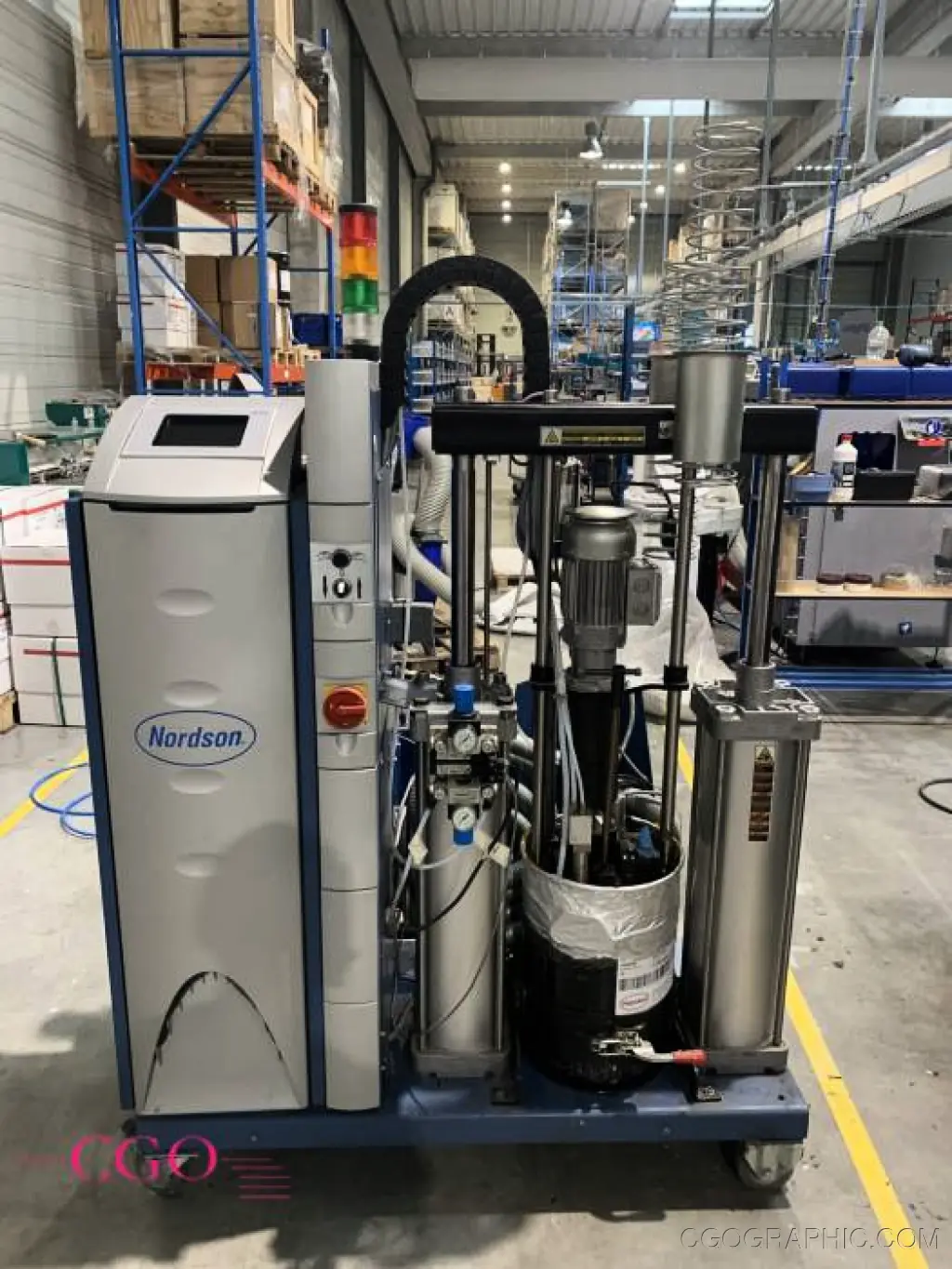

• gluing: pur (nordson)
• milling section: with extraction
• milling depth: adjustable
• adapts all features automatically to the thickness of each job
• binds from 1 to 60 mm (0.04 to 2.36 in)
• user-friendly industrial grade color touch screen
• check that the cover has been taken
•
• full automatic machine
•
•
• technical details:
• sheet size: max: 385 x 750 mm; min: 100 x 201 mm
• cover size: max. 385 x 750mm; min. 100 x 201mm
• book thickness: max. 60mm; min. 1mm
• cover weight range: 80 - 300 g/sqm
• cover pile hight: max. 80mm
• speed: max. 650 cycles/h
• dimensions: 2.020 x 2.400 x 1.500mm
• power: 400v/ 50hz
• weight: 650kg
